Rotary AHU Filter Cleaning - Ultramax Hydrojet Pvt Ltd - Manufacturer In Industrial Cleaning System Systems

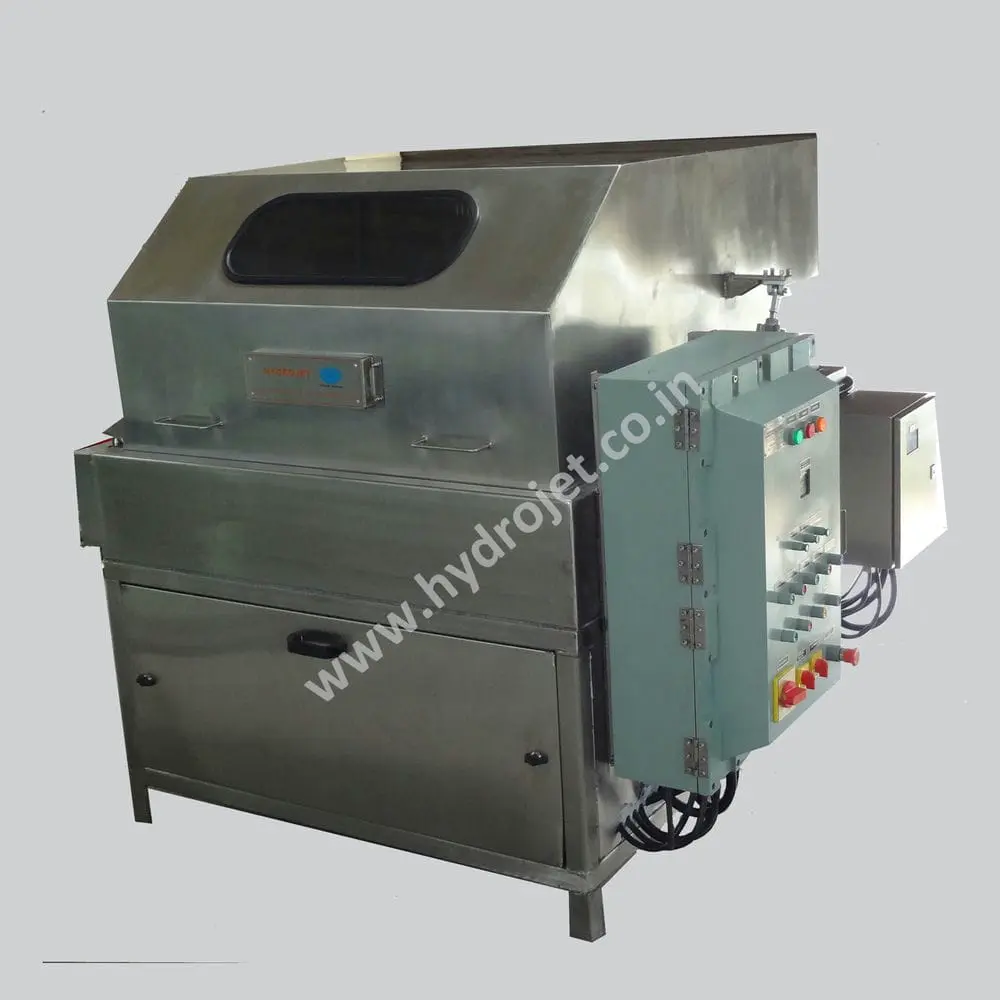

The Rotary AHU filter cleaning machine is designed for Single batch type AHU Filter cleaning application, with high cleanliness level and complete dry of pre filter can be achieved in this HVAC Filter cleaning machine. This type of AHU Filter cleaning machine is top loading rotary type with automatic pneumatic door opening & Closing. The Filter is to be place inside the rotary fixture located inside the AHU filter cleaning booth. After cycle start press door closes and filter starts rotating air purging done, Pressure washing done by special nozzle arrangement and drying cycle after that HVAC filter cleaning booth door opens & unload the clean & complete dry filter. Filter cleaning machine available in FLP & NON FLP Models.

Process

Filter cleaning is done in the following HVAC Cleaning procedure.
Loading the AHU filter in Rotary basket.
Door closes & Basket rotates.
Air purging to remove dust.
High pressure spray.
Compressed air blowing.
Hot Air blowing.
Door open & unload the cleaned filter.

Accessories

Multistage operation in same booth.
Wet scrubber.
High pressure pump.
High pressure hot air blowe.

Specifications & Features

High rate of cleaning of AHU Filter cleaning machine with customized design it can clean 40 to 80 Filters per shift depends upon dryness level required and the size.
Complete Stainless steel construction.
PLC & HMI Controlled Process.
Designed for high productive cleaning & drying with less utility consumption.
Less floor space requirement.
Less operator fatigue with consistent cleanliness level.
Conveyor filter cleaning machine is provided with sophisticated controls to avoid wastage of water & air.
FLP & NON FLP Models available.

Applications

Pharmaceutical AHU Filter.
Clean Room.
Process industry.
Manufacturing industry.

Enquire now
