Input Shafts Washing Machine - Ultramax Hydrojet Pvt Ltd - Manufacturer In Industrial Cleaning System Systems

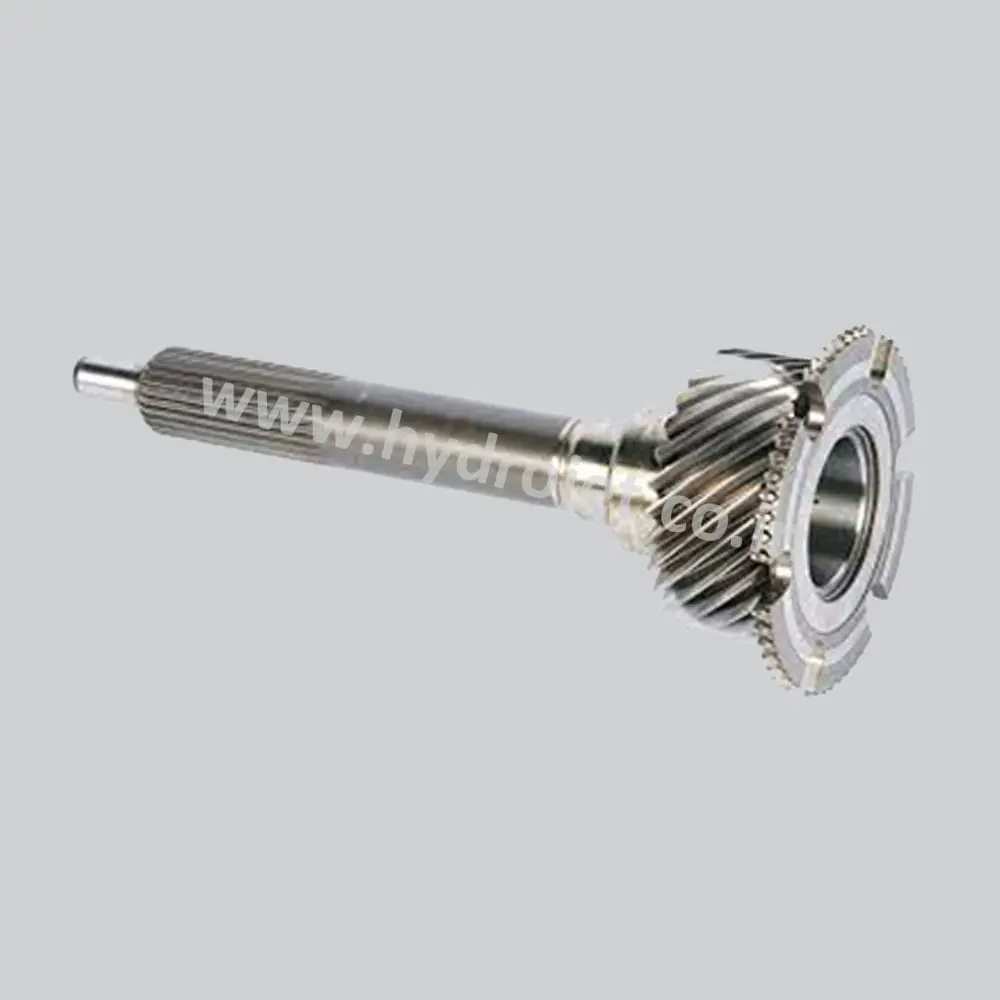

Input shafts washing Machine has been developed to provide fast and efficient cleaning suitable for parts with simple geometry with batch of small parts loaded on basket or individual big parts on fixtures.

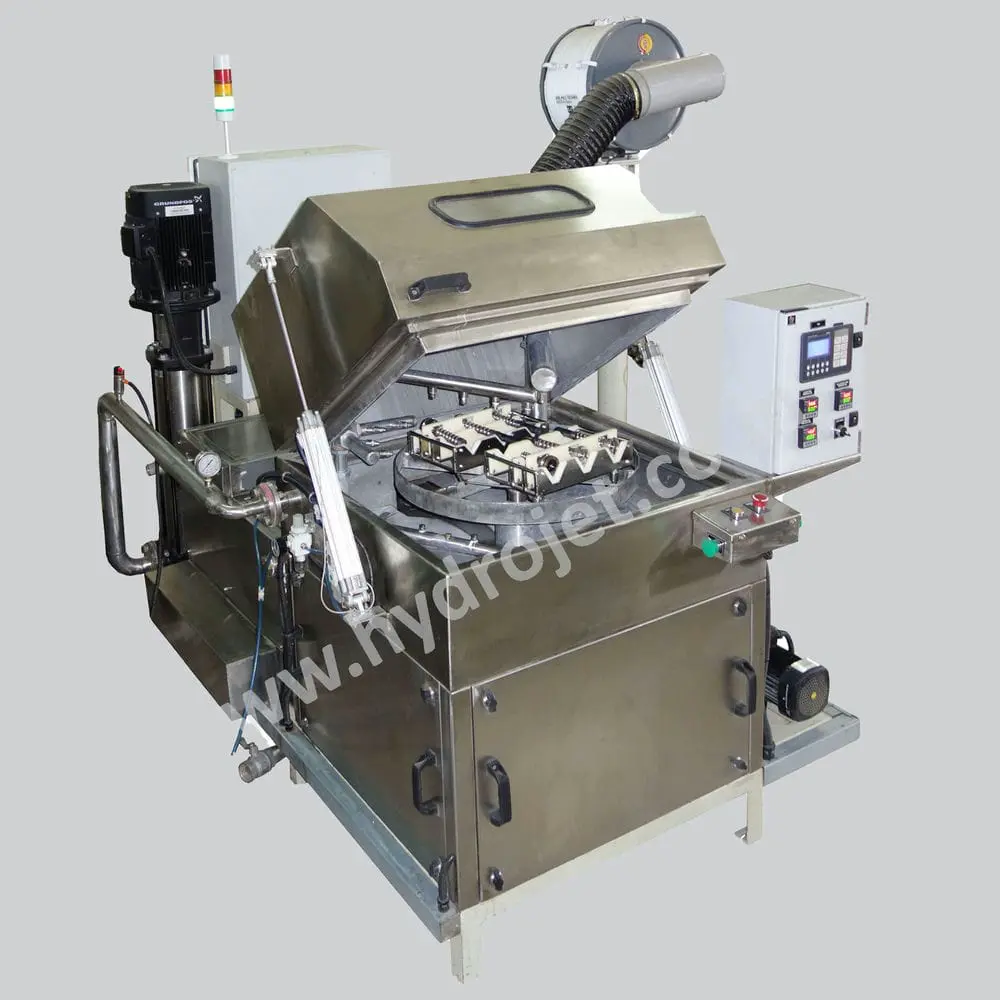

In Rotary Table Spray Washers Components would be loaded on Rotary basket, which is rotated by a motor and gearbox arrangement in slow speed. During the rotation, the solution (water along with alkaline) from the tank is pumped with the help of High Pressure pump to wash chamber of Top Loading spray washer through inline filter multiple and spray nozzles located above, below, and to the sides of the rotary table to attain higher degree of cleaning results. From Rotary Table Washer Wash chamber it drains back to the tank via a basket filter. Spray pressure indicator (Glycerine filled pressure gauge) is provided to monitor the line pressure. Low water level indication and Digital temperature indicator cum controller is provided on the control panel.

Features

Working Temperature: 50 to 65 deg.
High Pressure Alkaline sprays wash.
After Spray wash Rinse.
Compressed air blowing.
Hot air blowing.
Timers are provided for controlling wash cycle and drain time duration

Accessories

High pressure vertical / horizontal pumps.
Hot Air centrifugal blower with Air heater for component drying.
Stainless Steel V-Jet Nozzles ~ Durability and precise 360 degree cleaning coverage
PLC Controlled Panel with HMI Display
Gravity Filter to keeps tanks free of larger debris
Mist collector for Exhaust systems.
Oil Skimmer for effective removal of oil from tank.
Rotary type component cleaning machines wash tank can be also provided with Oil separator for effective removal of oil from the tank in high volume.
Washable Filtration system for reuse of aqueous solution.
A thermostat-controlled electric immersion heater in Rotary Basket Cleaning Machine maintains the aqueous cleaning solution at the desired temperature.
Rinse tank for removing alkalinity from component post spray wash
